Model Number : SC700D
Type : Load Cell
Place of Origin : Guangdong, China
Brand Name : SNC
Use : PRESSURE SENSOR
Theory : Resistance Sensor
Output : Analog SENSOR
Description : SC700D
Item : load cell 20kg
Material : aluminum alloy
Capacity : 10kg, 20kg, 30kg
Accuracy class : 0.05%
rated output : 1.0±0.1mV/V
Ultimate overload : 150% RO
Supply Voltage : 5-10VDC
IP grade : IP65
Warranty : 12 Months
Application : personal scale, fishing scale, postal scale
Packaging Details : micro weight sensor single point load cell 20kg-----carton package
Port : shenzhen
Supply Ability : 10000 Piece/Pieces per Month micro weight sensor single point load cell 20kg
MOQ : 10 pieces
Price : $1.80-3/pieces
Parameters
Application | finshing scale |
Model | SC700D |
Capacity | 10kg, 20kg, 30kg |
Comprehensive Error | 0.2 |
Output sensitivity | 1.0±0.1mV/V |
Nonlinearity | 0.01% F.S. |
Repeatability | 0.1% F.S. |
Hyteresis | 0.2% F.S. |
Creep | 0.1 (3min) % F.S. |
Zero balance | 0.1 (1min) % F.S. |
Temp.effect on zero | 0.2 % F.S./10℃ |
Temp. effect on span | ≤0.15 F.S./10℃ |
Zero output | ±0.3 MV/V |
Input resistance | 1000±50 ohm |
Output resistance | 1000±50 ohm |
insulation resistance | ≥2000 MΩ |
Recommended excitation voltage | 5-10V |
Compensated temperature range | -10-+50℃ |
Ultimate overload | 150%RO |
loadcell material | Aluminum alloy |
Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
micro weight sensor single point load cell 20kg10kg
micro weight sensor single point load cell 20kg10kg
micro weight sensor single point load cell 20kg10kg
![]() |

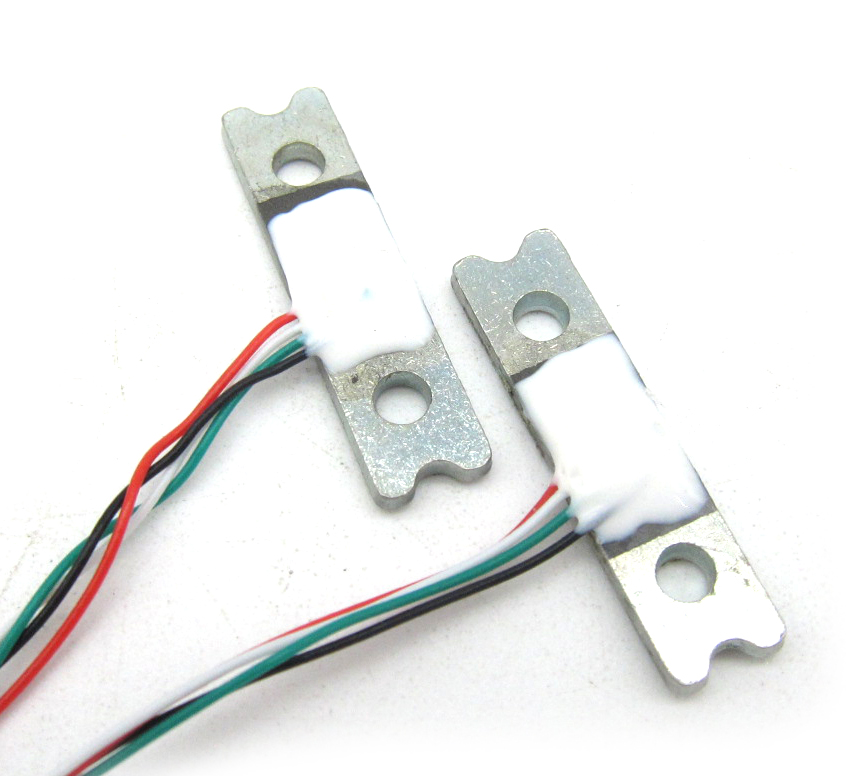

5-10VDC Aluminum Alloy Micro Weight Sensor Single Point Load Cell for 20kg10kg Weight Measurement Images |
